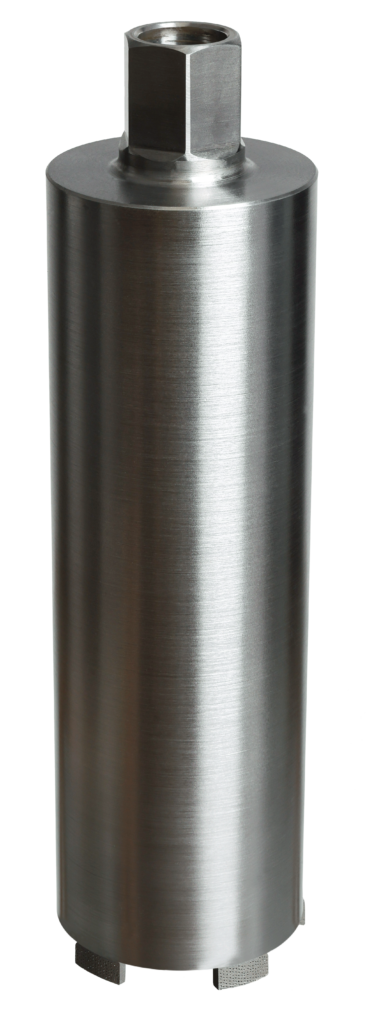

For dry drilling of masonry, brick and reinforced concrete.

Set segments for highest performance
Standard working length 330 mm
Special lengths and connections available on request

Diameter mmL mmNumber of segmentsLxWxH mm segmentsPart no.
32330316 x 3,5 x 1031AX90330-032
37330316 x 3,5 x 1031AX90330-037
42330416 x 3,5 x 1031AX90330-042
52330424 x 3,5 x 1031AX90330-052
57330424 x 3,5 x 1031AX90330-057
62330424 x 3,5 x 1031AX90330-062
68330424 x 3,5 x 1031AX90330-068
72330524 x 3,5 x 1031AX90330-072
76330524 x 3,5 x 1031AX90330-076
82330524 x 3,5 x 1031AX90330-082
87330524 x 3,5 x 1031AX90330-087
92330524 x 3,5 x 1031AX90330-092
102330624 x 3,5 x 1031AX90330-102
107330624 x 4,0 x 1031AX90330-107
112330624 x 4,0 x 1031AX90330-112
122330724 x 4,0 x 1031AX90330-122
125330724 x 4,0 x 1031AX90330-125
127330724 x 4,0 x 1031AX90330-127
132330824 x 4,0 x 1031AX90330-132
142330824 x 4,0 x 1031AX90330-142
152330824 x 4,0 x 1031AX90330-152
158330924 x 4,0 x 1031AX90330-158
162330924 x 4,0 x 1031AX90330-162
172330924 x 4,0 x 1031AX90330-175
1823301024 x 4,0 x 1031AX90330-182
2003301024 x 4,0 x 1031AX90330-200
2053301024 x 4,0 x 1031AX90330-205

Special lengths and diameters available on request
Indicate the actually required working length when ordering
Segment foot height can vary between 1 mm – 2 mm

dry

set diamonds
