Water collecting ring

Self-suctioning
No installation required
Cooling water amount easily visible through transparent material
Minimises soiling at the drilling point

for Ø mmPart no.
1002WSR100
1502WSR150
2002WSR200
2502WSR250
3002WSR300
3502WSR350

Sealing

Replacement sealing for water collection ring

for Ø mmPart no.
1002WSR100DS
1502WSR150DS
2002WSR200DS
2502WSR250DS
3002WSR300DS
3502WSR350DS

Pressurised water container

Solid design
/ 10 l container
4 m hose length
With pressure gauge

Part no.
1-BZB02WB

Vacuum pump

1.1 kW motor power
200 l/min pump volume
10 l safety tank for power outage
85% vacuum
Including 5 m air hose
Only in combination with vacuum set

Part no.
1-BZB01VP

Vacuum set for drill rig

Accessories for the drill rig RC150 or RC250
Incl. sealing rubber
With compressed air quick connect
Fastening with hand lever on the drill rig

compatible withPart no.
Drill rig RC1506DWS131ZB04
Drill rig RC2506DWS202ZB03

Vacuum plate

For damage-free fastening on smooth surfaces
Drill rig is fixed on vacuum plate

Dimensions LxW mmPart no.
220 x 3501-KB150ZB05
340 x 4501-KB250ZB05

Dust extraction

Ideal for dry drilling
Very rugged design – dual bearing
Jamming of the drill bit in the hole is reduced significantly
Shorter drilling times due to constant speed range

ThreadPart no.
R 1⁄2"1-KB-ZB50
UNC 11⁄4"1-KB-ZB51

SDS plus hammer drill

Ø 16 mm
Ø 20 mm
Length 200 mm
Four-edged version

Ø mmPcs.Part no.
1611-BZB16SDS4
1641-BZB16SDS4-VPE
2011-BZB20SDS4-VPE

Threaded rod for quick fastening of 4 the drill rig

M12/M16 thread
Threaded rod

ImageThreadL1L2Total lengthPart no.
1M1230 mm130 mm160 mm2NT003
2M1230 mm220 mm250 mm2NT003L
3M1280 mm125 mm205 mm2NT004
4M1280 mm170 mm250 mm2NT004L
2M1630 mm220 mm250 mm2NT021

Quick fix kit

Consisting of threaded rod, washer and nut

DescriptionPart no.
Threaded rod, long M12/30 mm (total length 160 mm, part. no. 2NT003), union nut, washer1-BZB21BS
Threaded rod, long M12/30 mm (total length 250 mm, part. no. 2NT003L), union nut, washer1-BZB21BSL
Threaded rod M12/80 mm (total length 205 mm, part. no. 2NT004), union nut, washer1-BZB22BS
Threaded rod, long M12/80 mm (total length 250 mm, part. no. 2NT004L), union nut, washer1-BZB22BSL
Threaded rod M16/30 mm (total length 250 mm, part. no. 2NT021), union nut, washer1-BZB23BS

Quick fix kit

Consisting of threaded rod & quick fastening nut

DescriptionPart no.
Threaded rod, long M12/30 mm (total length 250 mm, part. no. 2NT003L), Quick fastening nut (part no. 2NT056)1-BZB25BSL
Threaded rod, long M16/30 mm (total length 250 mm, part. no. 2NT021), Quick fastening nut (part no. 2NT056)1-BZB26BSL

Quick fastening nut

Even fastening also on inclining dowels

Part no.
2NT056

Brass ring & O-ring

Prevents jamming between drill bit and drill motor
O-ring prevents slipping of the brass ring on the drill spindle
For 1 1⁄4″ connector
Packaging unit: 1 x brass ring, 1 x O ring

Part no.
3BKZ-MR

Drive-in tool

/ M12/M16

TypePart no.
M121-BZB13
M161-BZB14

Drive-in tool

With plastic grip protection
M12

Part no.
1-BZB17

Quick clamp column

Tool-free and secure clamping between floor and wall
Working range from 1.7 to 3.0 m

TypePart no.
Quick clamp column 500 kg1-KB-ZB07
Quick clamp column 1000 kg1-KB-ZB08

Drill core catch

Device to catch the drill core when drilling in concrete ceilings
Usable up to Ø 350 mm
Max. drilling core length of 350 mm
Not suitable for brick ceilings or abrasive concrete

Part no.
5SBKF350

Drill bit extractor

1 1⁄4″ UNC

Part no.
3BKZ-AZ-01

Core catch pliers

Ø 52 mm – Ø 350 mm

Ø mmPart no.
521-BZB-KF052
621-BZB-KF062
721-BZB-KF072
821-BZB-KF082
1021-BZB-KF102
1071-BZB-KF107
1121-BZB-KF112
1521-BZB-KF152
1581-BZB-KF158
1621-BZB-KF162
2001-BZB-KF200
2121-BZB-KF212
2501-BZB-KF250
3001-BZB-KF300
3501-BZB-KF350

Drill bit machine adapter

ImageMachine sideDrill bit sidePart no.
1AG** 1 ¼" UNCAG** R ½"3BKZ-AD-01
2IG*** R ½"IG*** 1 ¼" UNC3BKZ-AD-05
3SPEZIAL DD-BI, 3/6 NutenAG** 1 ¼" UNC + IG*** R ½"3BKZ-AD-60
4SPEZIAL DD-BU, VielzahnAG** 1 ¼" UNC + IG*** R ½"3BKZ-AD-61
5SPEZIAL BL/BS/BRIG*** 1 ¼" UNC + AG** R ½" 3BKZ-AD-64
6AG** 1 ¼" UNC3 hole flange, 41SW*31BKZ-FL-41SW
7AG** 1 ¼" UNCBayonet flange, 50SW*31BKZ-BJ-50SW
8AG** 1 ¼" UNCBayonet flange, 41SW*31BKZ-BJ-41SW

* SW = spanner size
** AG = male thread
*** IG = female thread

Drill extensions

Aluminium version available on request

ImageWorking lengthConnectionPart no.
1100UNC 1 ¼"3BKZ-V1-100
1200UNC 1 ¼"3BKZ-V1-200
1300UNC 1 ¼"3BKZ-V1-300
1400UNC 1 ¼"3BKZ-V1-400
1500UNC 1 ¼"3BKZ-V1-500
2100R ½"3BKZ-V2-100
2200R ½"3BKZ-V2-200
2300R ½"3BKZ-V2-300
2400R ½"3BKZ-V2-400
2500R ½"3BKZ-V2-500

Quick release ring / drill split

Up to a drill power of 7,500 W possible
Drill split fixed on drill spindle with O-ring
Very stable design
Can remain constantly on the drill motor
Releasing the drill bit within seconds
Secured with high-resistance screws 12.9
To be used with long drill spindles
Alternative, to be used with adapter M33 on 1 1⁄4″ / part. no.: 2-DK30405L)

Part no.
6DBZB01

Adapter sleeve for quick release ring / drill split

Recommended in combination with drill split/quick release ring
Adapter M33 to 1 1⁄4″
For too short drill spindles
Drill spindle will be extended or travel will be decreased by 80 mm

Part no.
2-DK30405L

Slider

Up to a motor power of 5,000 W
The slider will prevent jamming of the screw-connection for 1 1⁄4″ drill bit connector
Safer than all other known accessories
Small constructional depth of only 10 mm provides for installation by simple sliding onto the drill spindle
Before assembling, make sure that no copper rings or similar are positioned at the contact surface of the drill spindle

Part no.
2EBSLIDER

WEKA AF Element

The anti-friction element by WEKA
This quick release ring is positioned on the drill spindle and simplifies releasing the drill bit

Type/suitablePart no.
for DK32, SR25/35/38/68 (1 1⁄4" connector)2-DKAE35
for SR25/35/38/68, SR65, SR75 (M33 connector)2-DKAE60

Quick fastening system for drill bits

Bit adapter will normally always remain on the drill bit
Simple, tool-free connection
Force transmission with 5 claw coupling

TypePart no.
Bit side5PSVS-BK-UNC-KR
Machine side5PSVS-BK-UNC-MA

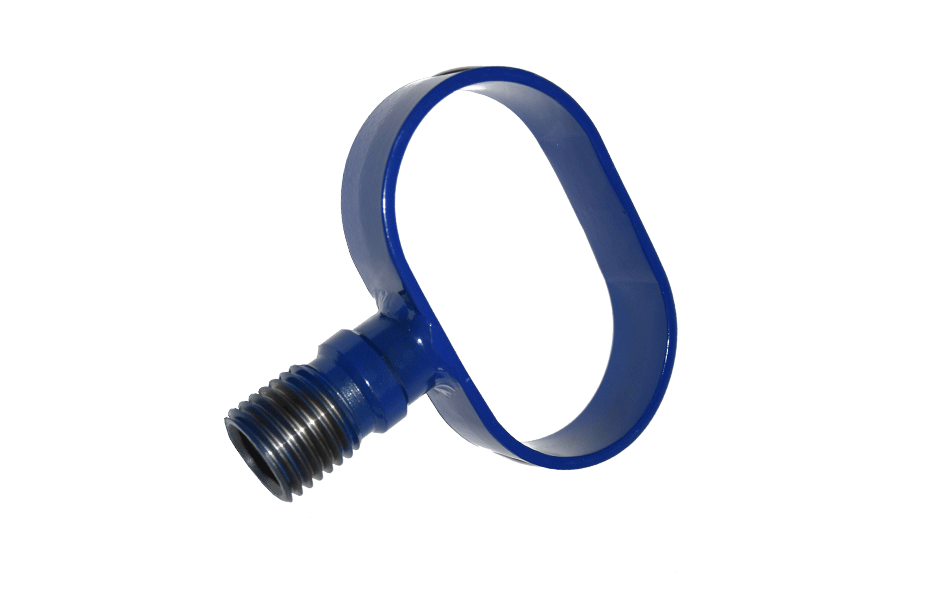

Drill bit transport grip

For easy transport of drill bits
For 1 1⁄4″ connector

Part no.
3BKZ-H1-100
