The proven wall saw blade for optimum cutting results.

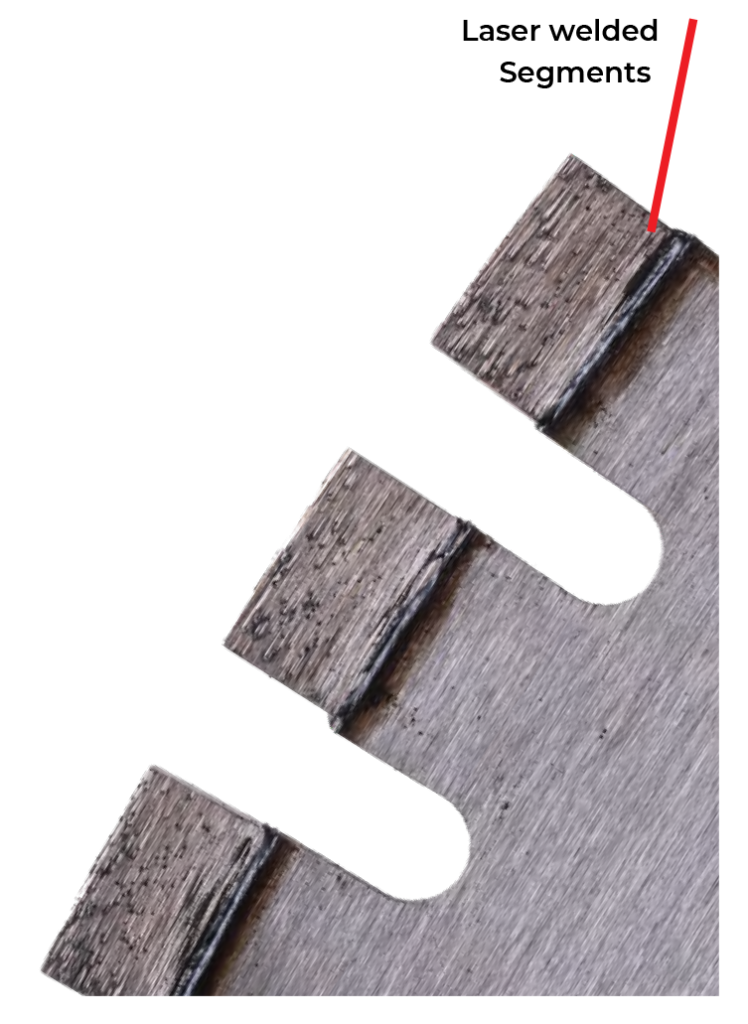

Laser-welded diamond segments for a safe bond of segment and master core
Short segments for improved removal of water and welding sludge
High cutting ability in reinforced concrete
/ Recommended up to max. 22 kW

Blade diameter mmToothingHole diameter + NL* mmNumber of segmentsSegment width mmSegment height mmPart no.
600C425,40 + NL523,8203ML15LT0600-38
600C425,40 + NL525,0203ML15LT0600-50
650C425,40 + NL575,0203ML15LT0650-50
700C425,40 + NL624,4203ML15LT0700-44
700C425,40 + NL623,8203ML15LT0700-38
800C425,40 + NL704,1203ML15LT0800-41
800C425,40 + NL704,4203ML15LT0800-44
800C425,40 + NL704,7203ML15LT0800-47
900C425,40 + NL794,4203ML15LT0900-44
900C425,40 + NL794,7203ML15LT0900-47

Intermediate and special sizes available on request



/ *NL = pin hole
The segment foot height can vary between 1 – 2 mm

wet

Wall saw
