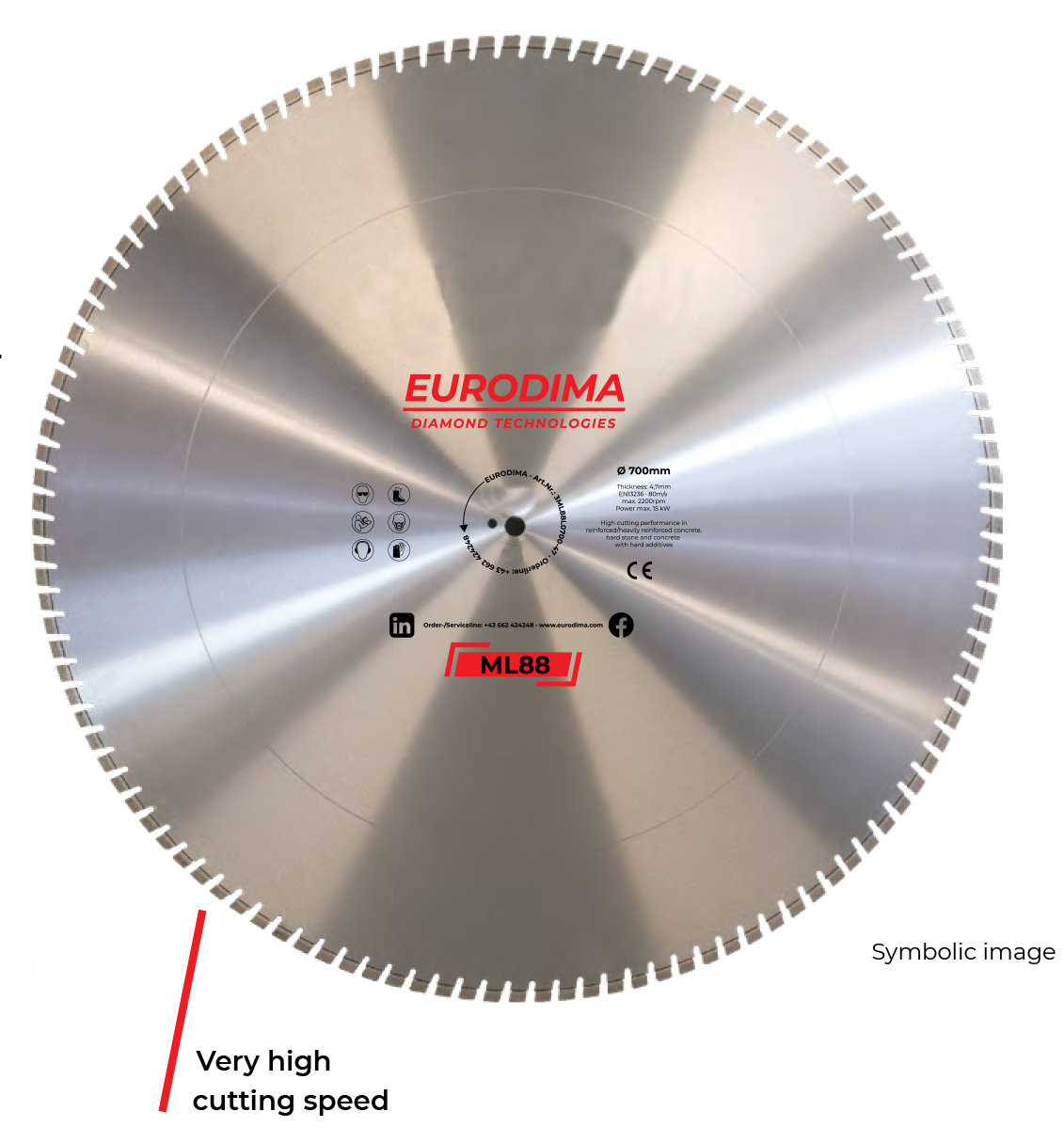

The wall saw blade of the latest generation guarantee optimum cutting results.

/ Laser-welded diamond segments for a safe bond of segment and master core
/ Short segments for improved removal of water and welding sludge
/ High cutting ability in reinforced concrete and hard aggregates such as Donau quartz, granite
/ Very high-cutting speed on iron
/ Segments with set diamond structure
/ Recommended up to max. 12 kW

Blade diameter mmToothingHole diameter + NL* mmNumber of segmentsSegment width mmSegment height mmPart no.
600C425,40 + NL645,0133ML88L0600-50
800C425,40 + NL804,7133ML88L0800-47
825C425,40 + NL824,7133ML88L0825-47
1200C425,40 + NL1204,4133ML88L1200-44

Intermediate and special sizes available on request


*NL = pin hole
The segment foot height can vary between 1 – 2 mm


Table saw

Floor cutter (7.5 kW – 11 kW)

Wall saw

with set diamonds
