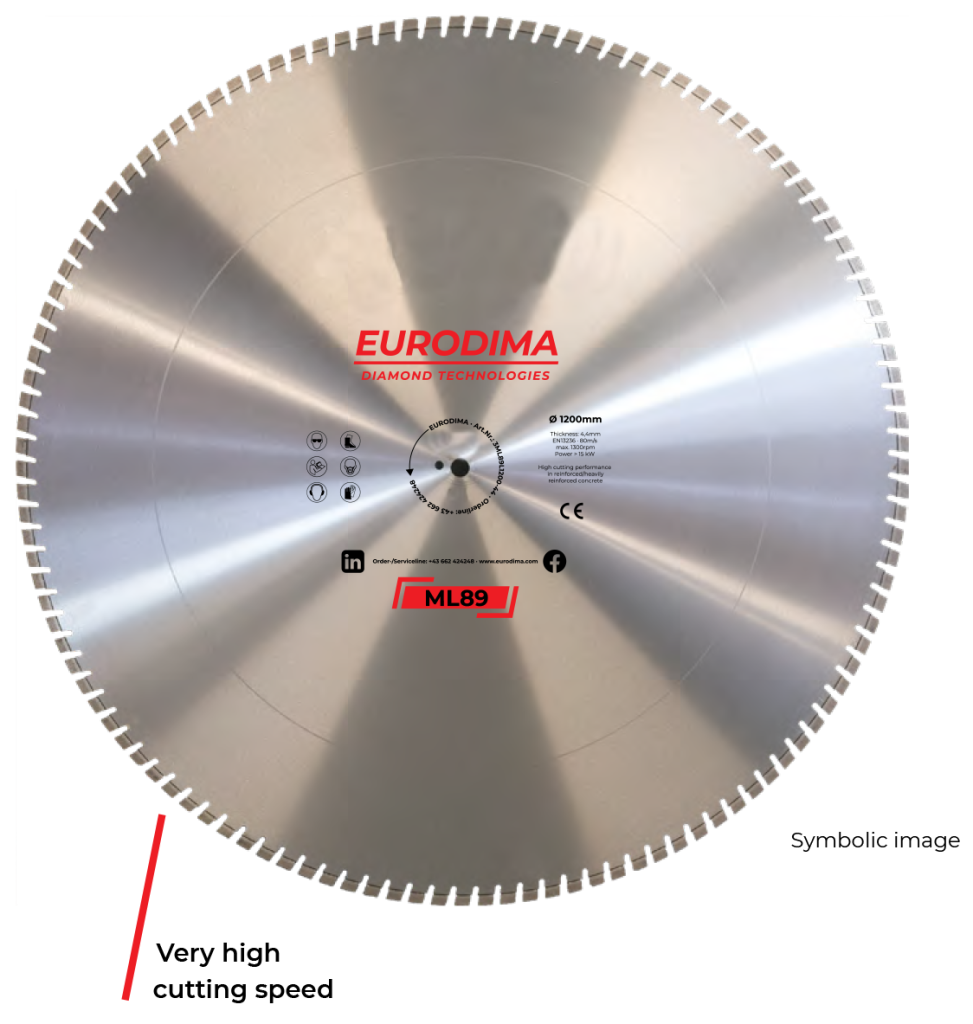

The wall saw blade of the latest generation guarantee long tool life and optimum cutting results.
/ Laser-welded diamond segments for a safe bond of segment and master core
/ Short segments for improved removal of water and welding sludge
/ High cutting ability in reinforced concrete and hard aggregates such as Donau quartz
/ Very high-cutting speed on iron
/ Segments with set diamond structure
/ Recommended from 15 kW
| Blade diameter mm | Toothing | Hole diameter + NL* mm | Number of segments | Segment width mm | Segment hight mm | Part no. |
| 600 | C4 | 25,40 + NL | 64 | 4,0 | 13 | 3ML89L0600-40 |
| 600 | C4 | 25,40 + NL | 64 | 5,0 | 13 | 3ML89L0600-50 |
| 650 | C4 | 25,40 + NL | 68 | 4,0 | 13 | 3ML89L0650-40 |
| 650 | C4 | 25,40 + NL | 68 | 5,0 | 13 | 3ML89L0650-50 |
| 700 | C4 | 25,40 + NL | 72 | 4,0 | 13 | 3ML89L0700-40 |
| 700 | C4 | 25,40 + NL | 72 | 4,7 | 13 | 3ML89L0700-47 |
| 800 | C4 | 25,40 + NL | 80 | 4,0 | 13 | 3ML89L0800-40 |
| 800 | C4 | 25,40 + NL | 80 | 4,7 | 13 | 3ML89L0800-47 |
| 825 | C4 | 25,40 + NL | 82 | 4,7 | 13 | 3ML89L0825-47 |
| 900 | C4 | 25,40 + NL | 90 | 4,4 | 13 | 3ML89L0900-44 |
| 1000 | C4 | 25,40 + NL | 100 | 4,4 | 13 | 3ML89L1000-44 |
| 1200 | C4 | 25,40 + NL | 120 | 4,4 | 13 | 3ML89L1200-44 |
/ Intermediate and special sizes available on request
/ *NL = pin hole
/ The segment foot height can vary between 1 – 2 mm
wet
Floor cutter (7.5 kW – 11 kW)
Floor cutter XL (11 kW – 25 kW)
Wall saw
with set diamonds
