Part no. 6WDM68

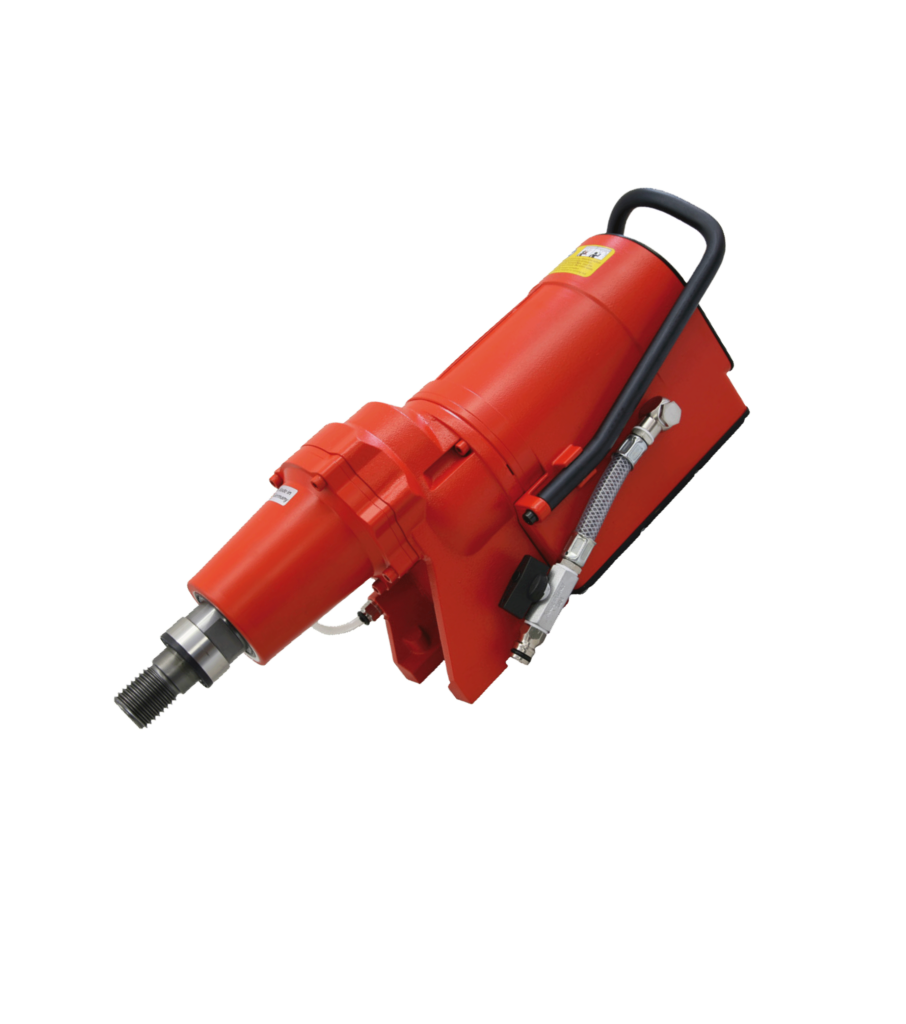

/ Extremely powerful, water-cooled SR motorٜ
/ Drilling diameter info on the displayٜ
/ During drilling, 6 motor power levels selectable
/ Overload coupling/water-cooled
| / SPECIFICATIONS | |
| Voltage | 400 V~ |
| Nominal current | 15.0 A |
| Power consumption | 7,500 W |
| Nominal speed | 140 /175 / 205 / 240 / 270 / 305 rpm |
| Tool holder | 1 1⁄4" |
| max. drilling diameter | 50–350 mm |
| Weight | 18.3 kg |
/ RECOMMENDED DRILL RIG
DR400ASW, KF700
/ POSSIBLE DRILL RIG
KF1000
/ Hole pattern
Hook
Part no. 6DR500ZB09 for DR400ASW
Quick exchange plate part no. 4KF600.1.19BGK
Part no. 4KF600.1.19BGK for DR400ASW
Distance plate 30 mm (for Ø 500 holes)
Part no. 6DRZB11 for DR400ASW
rig-guided
required mains voltage 400 V
wet
regulated frequency
