The new wall saw delights users with maximum performance and low weight. A long tool life and the worldwide longest service interval for wall saws will also make this a very economical choice. Structurally identical feed and swivel motors, equipped with a wear-free electromagnetic brake, also contribute to the cost effectiveness.
The wall saw WS20 is available on two rail systems, as WS20E for the EURODIMA rail system and as WS20H for the rail system of the H version.
/ Wall saw head: only 29 kg
/ Motor with 20 kW ServoPower, convenient 12 kg and water-cooling – no additional after cooling necessary
/ Tool-free motor interlock with hand lever
/ Power transmission from the motor with a dampened claw coupling wear free
/ Autonomous cooling water drain from motor and saw – avoiding frost damage
/ Wear-free, electromagnetic brake
/ Tool-free quick release fastener for blade guard
/ Long life service interval after 250 operating hours
/ Feed and swivel motor are structurally identical – easy to be exchanged
/ Feed and swivel motor are protected with a friction clutch from overload
/ Simultaneous control of feed and swivelling possible
/ Improved roller system due to axial and radial bearings
/ Flush flange can be assembled and disassembled from the motor side – radial blade flange holder
/ Free saw blade lift of Ø 825 mm
/ Blade diameter up to Ø 1,600 mm, therefore a max. cutting depth of 725 mm
/ Standard equipped with radio remote control
/ Air-cooled control box
/ For the E & H versions, no additional flush flange is required
/ Hardened roller guide
/ Operation with 16 A also possible
/ Automatic control of the feed and lowering speed
/ SPECIFICATIONS | WS20E / WS20H |
Output power at the saw blade | 20 kW |
Max. speed at the saw blade | 1,140 rpm |
Max. blade diameter | 1,600 mm |
Max. cutting depth | 725 mm |
Feed and swivel force | 300 kg |
Lowering – longitudinal feed | 0 - 3 m/min |
Max. speed of the swivel arm | 0–2 rpm |
Weight – wall saw motor | 12.0 kg |
Weight – saw head without motor | 29 kg |
Saw blade bore | 60 mm - other on request |
Saw blade flange for flush cut | WS20E - TK 110 - 6xM8, TK 130 - 6 x M8 WS20H - TK 110 - 6xM10, TK 130 - 6 x M8 |
Machine dept | 424.5 mm |
Machine width for horizontal swivel arm | 430 mm |
Machine width | 380 mm |
/ Quick and easy installation possible
/ Also suitable for uneven surfaces with rail fastening brackets
/ Lightweight and extremely rugged design
/ The rail form is dimensionally stable and safe against torsion
/ Very low in maintenance
/ Toothed rack and guide rods exchangeable
/ Rail system is compatible with the old EURODIMA SB321 wall saw
/ Smallest possible dowel distance to the cut only 81.5 mm
/ SPECIFICATIONS | 6SBZB031 | 6SBZB066 | 6SBZB131 | 6SBZB196 | 6SBZB231 |
Length | 0.30 m | 0.65 m | 1.30 m | 1.96 m | 2.30 m |
Weight | 3.1 kg | 6.8 kg | 13.7 kg | 19.8 kg | 24.3 kg |
Spare parts for Guide rail type | Toothed rack | Guide rail* |
---|---|---|
0.30 m | 6B100557 | 6B320336-2 |
0.65 m | 6B100553 | 6B320337-2 |
1.30 m | 6B100437 | 6B320338-2 |
1.96 m | 6B100901 | 6B320339-2 |
2.30 m | 6B100550 | 6B320340-2 |
/ * 2 rail fastening brackets per guide rail
/ Refer to products for concrete screws, drop-in anchors & more accessories

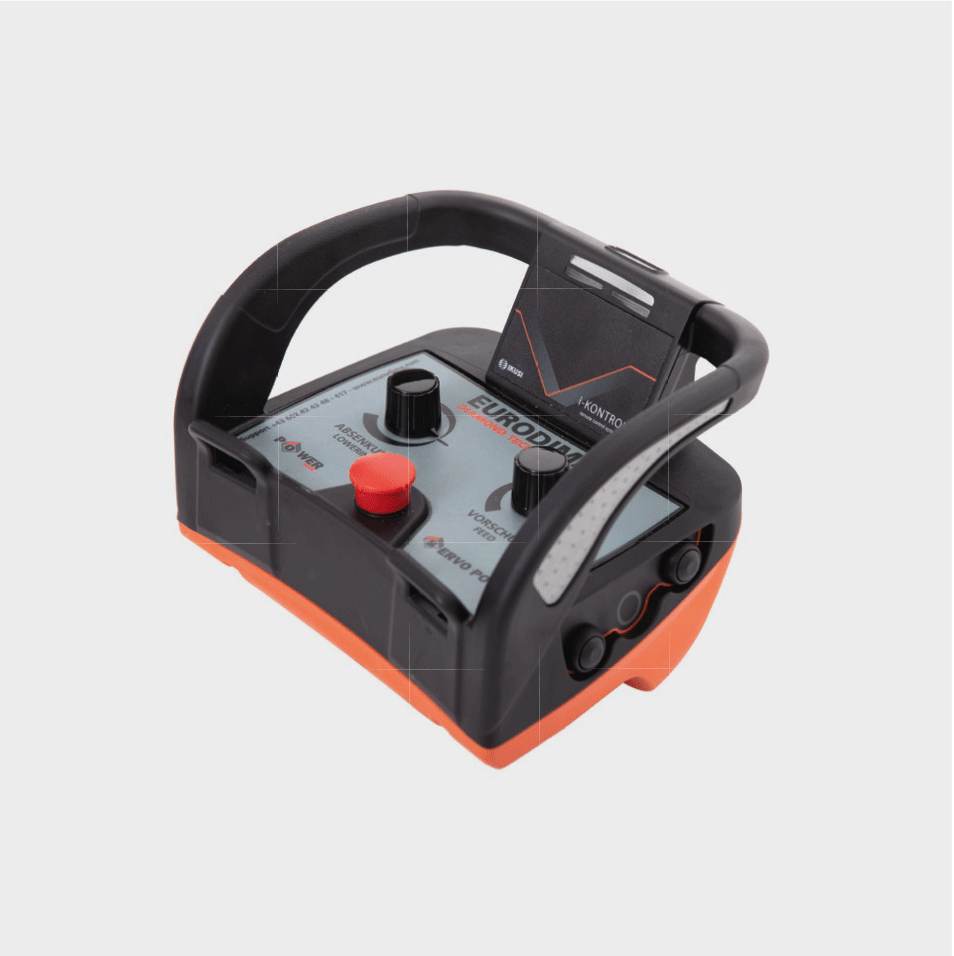

/ High protection against interference
/ Modern design, nonslip handle
/ Frequency management against HF interference
/ Innovative control
/ Simultaneous feed and lowering possible
/ Range approx. 15 m, more depending on the environmental conditions
/ Receiver installed directly in the PowerCube or the PowerUnit, i.e. there are no additional installations required and optimum protection is guaranteed
/ SCOPE OF DELIVERY
1 sender, 1 receiver, 1 double charger, 2 batteries, operating instructions, abdominal belt, vehicle charging adapter
/ SPECIFICATIONS | SENDER |
Type of production Pressure | IP65/NEMA4 |
compensating valve | Goretex Film |
Frequency band | Multiband (400-930 MHz) |
Operating time battery | 16 hours |
Temperature range | -20°C +70°C (-4F + 158F) |
Weight with battery | 950 g |
/ SPECIFICATIONS | RECEIVER |
Temperature range | -20°C + 70°C (-4F + 158F) |
Weight with battery | 300 g |
Dimensions | 117 x 133 x 36 mm |
Wall saw head EURODIMA
/ Lightweight saw head with 29 kg
/ Long life service interval after 250 operating hours
/ Feed and swivelling motor are structurally identical – easy exchange
/ Feed and swivel motor are protected from overload with a friction clutch
/ Wear-free, electromagnetic brake
Part no.
6WS20E
Wall saw head H – for the alternative guide rail
/ Lightweight saw head with 29 kg
/ Long life service interval after 250 operating hours
/ Feed and swivelling motor are structurally identical – easy exchange
/ Feed and swivel motor are protected from overload with a friction clutch
/ Wear-free, electromagnetic brake
Part no.
6WS20H
Flush blade guard
/ Light-weight despite high stiffness
/ Available in 1-part or 3-part versions
Part no.
Blade guard ∅ 800 mm, 1 Part – 6SBZB0800B
Blade guard ∅ 1.200 mm, 1 Part – 6SBZB1200B
Blade guard ∅ 1.600 mm, 1 Part – 6SBZB1600B
Blade guard ∅ 800 mm, 3 Part – 6SBZB0800BSC
Blade guard ∅ 1.200 mm, 3 Part – 6SBZB1200BSC
Water-repellent grease
/ Special grease lubricating cartridge 400 g
Part no.
2NT063
Flush blade guard
/ Light-weight despite high stiffness
/ Available in 1-part or 3-part versions
Part no.
Blade guard ∅ 800 mm, 1 Part – 6SBZB0800B
Blade guard ∅ 1.200 mm, 1 Part – 6SBZB1200B
Blade guard ∅ 1.600 mm, 1 Part – 6SBZB1600B
Blade guard ∅ 800 mm, 3 Part – 6SBZB0800BSC
Blade guard ∅ 1.200 mm, 3 Part – 6SBZB1200BSC
Machine type | Components/Contents | Part no. |
---|---|---|
WS20E / WS20H | Wire harness feed motor | 6WS20SK3 |
WS20E | 250 hour service kit | 6WS20ESK1 |
WS20H | 250 hour service kit | 6WS20HSK1 |
WS20E / WS20H | 250 hour service kit motor | 6WS20PMSK1 |
WS20E | Guide roller set | 6WS20ESK2 |
WS20H | Guide roller set | 6WS20HSK2 |
WS20E | Flange | 6B007135 |
WS20H | Flange | 6B008135 |
WS20E / WS20H | Flange cover | 6B007145 |
