ServoPower wire saw

EURODIMA wire saw in action – cutting a 110 tons heavy power generator

/ Wire saw system solution with EURODIMA servo system
/ Modular servo drive system, can be used for wire and wall saw
/ Lightweight and compact control unit
/ 2-speed gearbox for different wire saw applications
/ Rugged and high-torque drive
/ Flexible and user-friendly system solution
/ Quickly disassembled for easy transport
/ No extension over the entire machine length, even if the wire storage is full
/ Pulling side of the machine: lower swivel pulley

EURODIMA wire saw with WS20 power unit

EURODIMA wire saw with WM50 power unit

/ Tool-free removal of the transport wheels

/ For easy transport in higher storeys

/ Tool-free adjustment of the swivel pulley by hand possible

/ Servo motor at the 2-speed gearbox

/ Foldaway transport handles for easy transport on the construction site

/ When the wire storage is full, the system is deactivated automatically (auto stop)

/ An easy support lock guarantees risk-free work and avoids slipping of the sawing unit

/ The rollers can be exchanged quickly and easily
/ Incl. protection bracket against wire loss

/ Tension the wire pneumatically
/ Position stop approx. 2–3 mm in front of the guide carriage and fasten with the hand lever
/ Release wire (control lever on centre position) guide carriage should touch the stop
/ Start the wire saw and tension the wire after 1–2 seconds with the pneumatic controller

/ Assembly and disassembly of the individual components possible in less than 10 minutes
/ Heaviest component approx. 70 kg

/ Maintenance-free pneumatic cylinder
/ Optimised belt deflection system
/ No extension over the total dimensions of the machine
/ Low maintenance
/ Low wear due to constant pressure
/ Tool-free removal of the entire pneumatic unit possible in a few minutes

Part no. 6PA12

/ Tool-free adjustable transport handles
/ Automatic switch-off when reaching the set pressure
/ With pressure gauge display
/ Motor protection switch
/ Can also be transported by crane
/ Large and rugged transport wheels
/ PowerCube/PowerUnit not included in the scope Compressor with vibration-reduced bearing

/ PowerCube/PowerUnit can be used for wall and wire saw applications
/ Tool-free fastening for quick installation and removal

/ Compact unit on a transport carriage
/ Feed and wire velocities easily adjusted

Part no. 6WBZB02

/ The 2 pulley version benefits from a low weight and perfect wire guide
/ Very stable dowel base with level screws
/ Tool-free adjustment by hand possible
/ Bayonet connector for wire cooling and for reducing wear
/ Versatile application for the often complicated wire guide
/ Pulleys can be swivelled by 360°

Accessories • Spare parts

Part no. 6WBZB04

/ The patent-protected 3-pulley solution gives the wire guiding device a very stable and smooth wire guiding performance
/ Very stable dowel base with level screws
/ Tool-free adjustment by hand possible
/ Bayonet connector for wire cooling and for reducing wear
/ Versatile application for the often complicated wire guide
/ Pulleys can be swivelled by 360°
/ For an even smoother wire guidance
/ Centre pulley keeps the torsion of the wire

Accessories • Spare parts

Part no. 6WBZB03

/ Ø 200 mm roller
/ Manageable cutting edge reduction
/ Release during operation possible (with pin retention)

Part no. 6BWC9

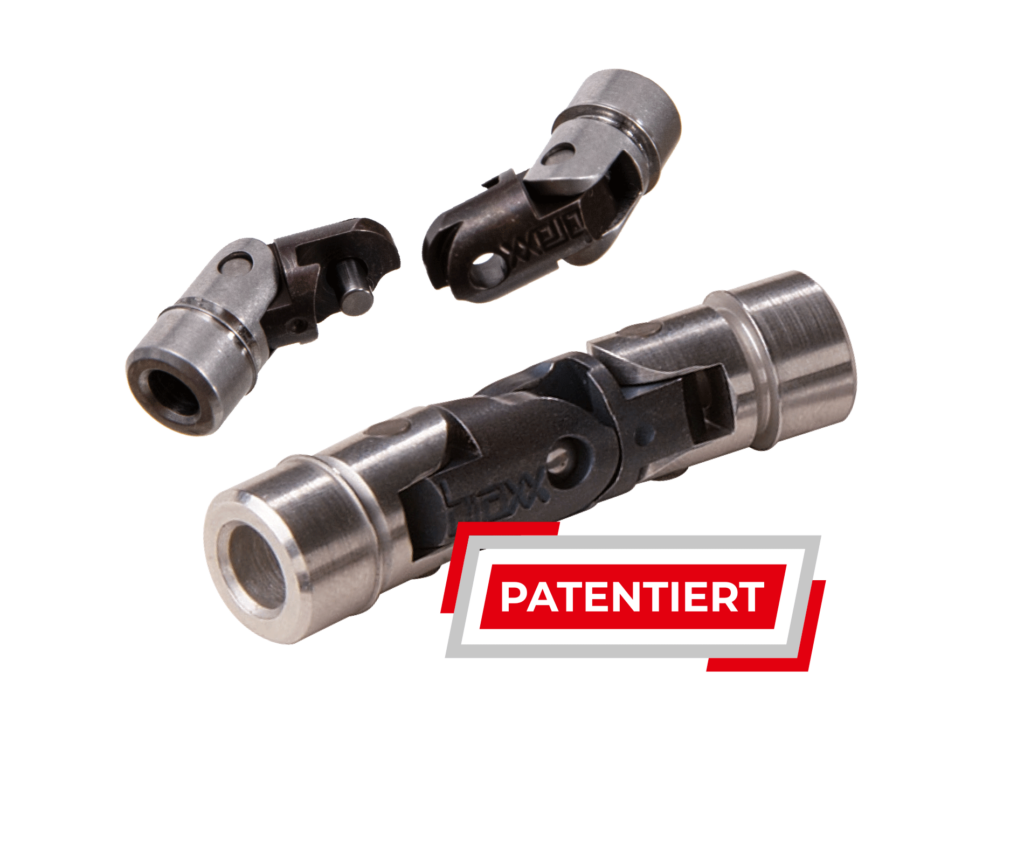

/ Tool-free opening and closing of the wire connector
/ Can be rotated freely in all directions, full gimbal
/ Compact design over 45 mm, 3-fold bearing
/ No running direction
/ Tensile force up to 400 kg, wear-free
/ Diameter 9 mm
/ Saving a lot of time for many small cuts, entirely without wire length loss
/ Connect with clamping jaws 8 mm

Accessories • Spare parts

Part no. 6DSZQZ03AKKU

/ Low-effort crimping due to battery
/ 11 t pressing force
/ Pressing procedure stops automatically when the is reached – jaws can be separated easily with one thumb only!
/ Emergency release button to release the clamping jaws before the maximum pressing force is reached
/ Quick exchange of the pressing jaws with quick release fastener
/ 1 lithium-ion battery, 18 V
/ Battery capacity: 2 operating hours
/ Loading duration (90%): approx. 40 minutes
/ Convenient stable plastic box included in the scope of delivery
/ One-hand operation
/ Modular battery system for other devices, e.g. drill hammer, impact screwdriver, etc.
/ Clamping jaws 7 mm for wire crimp 8 mm
/ Clamping jaws 8 mm for wire connector

/ SCOPE OF DELIVERY
1 x crimping tool, 1 x 18 V lithium-ion battery, charger (also for vehicle connection, 1 x clamping jaw 7 mm, 1 x clamping jaw 8 mm, operating instructions

Accessories • Spare parts

Part no. 6WBZB05

/ Required drill diameter: 160–165 mm
/ Active tooling length: 1.2 m
/ Special lengths on request
/ Note: For plunge sawing, this article is required twice
/ Intermediate pipe available in every desired length on request

/ approx. 1.5 bar, the exact pressure setting depends on the applicable conditions when cutting

/ approx. 3.0 bar, the exact pressure setting depends on the applicable conditions when cutting

/ approx. 4.5 bar, the exact pressure setting depends on the applicable conditions when cutting

/ approx. 6.0 bar, the exact pressure setting depends on the applicable conditions when cutting

Part no. 1-WB-400

/ It is driven by powerful ServoPower components
/ For versatile sawing with 6 plus 2 m wire storage
/ Dual profiling of the drive pulley, no slipping during start-up
/ 10 components, can be disassembled in only 5 minutes, very time-saving handling due to minimum tooling time
/ Adjustable cutting speed of 2–30 m/s
/ Always the correct setting for the desired cutting result
/ Convenient spring tensioning system, wire protecting

Accessories • Spare parts

Part no. 1-ZS350

/ It is driven by powerful ServoPower components
/ The easy option to make circular openings in ceilings and walls
/ The circular wire saw can be used optimally for wall thicknesses up to 800 mm
/ The use of existing drive versions keeps the capital expenditure low
/ Cutting speed continuously adjustable

Accessories • Spare parts
